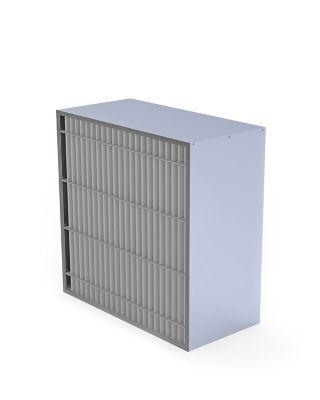

VaporSorb™ FES Chemical Filters
Contact your Entegris account manager or
- Return air handling (RAH) applications
- Make-up air (MAU) applications
- Industrial environments
Specifications
*Entegris expresses filter AMC capacity as the product of challenge concentration and time, the unit is ppb-h (parts per billion-hours; ppb = 10-9 mols per mol of air). With that number, and the desired end-of-life removal efficiency, the user can calculate lifetime in hours by using their measured onsite AMC concentration.
Nominal size | 242412 | 241212 |
Targeted air flow | 3400 m3/h (2000 cfm) | 1700 m3/h (1000 cfm) |
Targeted face velocity | 2.54 m/s (500 ft/min) | 2.54 m/s (500 ft/min) |
Height | 592 mm (23.312") | 287 mm (11.312") |
Width | 592 mm (23.312") | 592 mm (23.312") |
Depth | 287 mm (11.312") | 287 mm (11.312") |
Weight | 14.5 kg (32 lbs) | 9.1 kg (20 lbs) |
Pressure drop | 110 Pa @2.54 m/s (500 ft/min) | 110 Pa @2.54 m/s (500 ft/min) |
